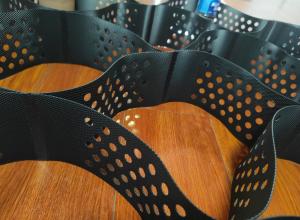

HCNS Hdpe Geocell For Road Driveway Geocells Black Geocell

Name: HCNS Hdpe Geocell For Road Driveway Geocells Black Geocell
Brand: Geomax
Price: 1 USD

Wholesale HCNS Hdpe Geocell For Road Driveway Geocells Black Geocell from china suppliers

Brand Name : Geomax

Model Number : Woven Geotextile

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 3000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 5000㎡ per day

Delivery Time : 7 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or Ccustomized

Material : PE HDPE

Welding space : 330mm 356mm 400mm 432mm 445mm 500mm 660mm 712mm

Cell depth : 50 75 100 150 200 250mm

Thickness : 1mm 1.2mm 1.5mm 2mm

Transport Package : Folded strips are wrapped by film and layed on pallets

Specification : 50mm 100mm 150mm 200mm

Origin : Anhui, China

Treatment : UV Treated 0.1%~0.6%or as Customer′s Requirement

Contact Now

PRODUCT DESCRIPTION

HCNS Hdpe Geocell For Road Driveway Geocells Black Geocell

Product Introduction

Geocell confinement system features

1, Lightweight and compact

Geocell confinement system is made of high-density polyethylene, it is lightweight, so very easy to carry by human power, no need any heavy machinery. In addition, since it is delivered in a compactly folded state, so it does not require a large space for storage.

2, Easy construction

The construction method is easy, after hitting an anchor, the geocell can be deployed, filled with filling material, and compacted repeatedly. In addition, since foundation concrete is not required, it also contributes to shortening the construction period.

3, Excellent followability

Due to the flexibility of the material, it demonstrates excellent followability even on undulating sites and can easily handle curved sections.

4, Effective use of generated soil

Since various filling materials such as locally generated soil, crushed stone, recycled concrete, and improved soil can be used depending on the situation, it also contributes to the reduction of residual soil transportation costs.

5, Good for Landscape

Since the setback part is a flat surface, it is easy to vegetate using the filling material, so it is excellent in landscape.

Specifications

HCNS Specifications (ASTM & GB standard)

HCNS – GB standard – Quality standard

Carbon Black content ASTM D 1603 ≥1.5%
Density ASTM D 1505 ≥0.94g/cm3
Sheet Thickness ASTM D 5199 1.5mm
Seam Peel Strength USACE GL-86-19 ≥10KN/m
Tensile strength at Yield ASTM D 638 ≥16KN/m

HCNS – ASTM standard – Quality Standard

Carbon Black content ASTM D 1603 ≥1.5%
Density ASTM D 1505 0.935-0.965g/cm3
Sheet Thickness ASTM D 5199 1.5mm
Seam Peel Strength USACE GL-86-19 ≥14.2KN/m
Tensile strength at Yield ASTM D 638 ≥22KN/m
Environmental stress crack resistance ASTM D 1693 ≥5000hrs
OIT oxidation induction time ASTM D 3895 ≥150min

HCNS Hdpe Geocell For Road Driveway Geocells Black Geocell

Our HCNS Production Process

HCNS Hdpe Geocell For Road Driveway Geocells Black Geocell

HCNS Manufacture

HCNS Hdpe Geocell For Road Driveway Geocells Black Geocell

Exhibition

Our Certificates and HDPE Geocell Testing reports
