Best Price Slope Protection Driveway Plastic Textured And Perforated Gravel Grid Geocell For Road

Name: Best Price Slope Protection Driveway Plastic Textured And Perforated Gravel Grid Geocell For Road
Brand: Geomax
Price: 1 USD

Wholesale Best Price Slope Protection Driveway Plastic Textured And Perforated Gravel Grid Geocell For Road from china suppliers

Brand Name : Geomax

Model Number : 150-660

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : HDPE

Type : 150-660

Color : Black

Welding space : 660mm

Thickness : 1.5mm

Height : 150

Surface : Perforated

Standard : ASTM

Contact Now

PRODUCT DESCRIPTION

Best Price Slope Protection Driveway Plastic Textured And Perforated Gravel Grid Geocell For Road

Product Introduction

To minimize transport costs, geocell panels are folded flat and stored on pallets. During installation the panels are expanded to form cells. The sections are filled with material such as soil, sand, aggregate or recycled concrete, and then mechanically compacted to ensure that the fill is flush or slightly below the adjacent terrain. Where it is important to separate a clay substrate from a gravel fill, a non-woven geotextile can be laid beneath the geocell.



Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

Application

Best Price Slope Protection Driveway Plastic Textured And Perforated Gravel Grid Geocell For Road

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

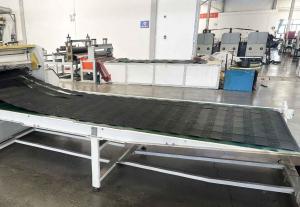

HCNS Manufacture
