Geocell Ground Enhancement Cellular System Gravel Grid Driveway Retaining Wall Geocell

Name: Geocell Ground Enhancement Cellular System Gravel Grid Driveway Retaining Wall Geocell
Brand: Geomax
Price: 1 USD

Wholesale Geocell Ground Enhancement Cellular System Gravel Grid Driveway Retaining Wall Geocell from china suppliers

Brand Name : Geomax

Model Number : 1.5-150-356

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Cell Material : HDPE Plastic

Standard : ASTM or GB/T

Cell Height : 150

Model : 150-356

Color : Black, green, brown, Black Yellow White Green, Green or as per request

Welding Space : 356mm

Cell Thickness : 1.5mm

Surface : Textured&Perforated

Contact Now

Geocell Ground Enhancement Cellular System Gravel Grid Driveway Retaining Wall Geocell

Product Introduction

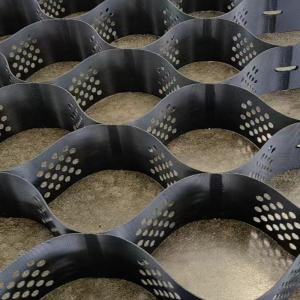

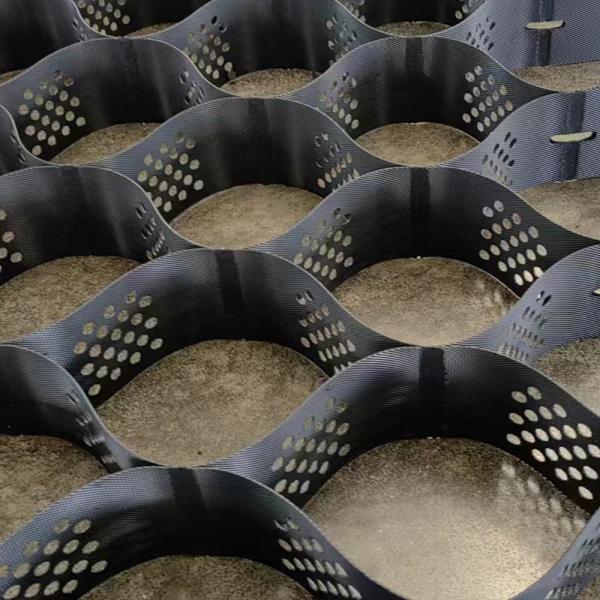

Hdpe geocell is a mesh like honeycomb structure formed by high-strength HDPE sheets and strips, which are strongly welded (usually ultrasonic). hdpe geocell can be expand and contract freely, fold during transportation, open and fill with soil or concrete during use, forming a structure with strong lateral limitations and high stiffness.Hdpe gepocell has the advantages of aging resistance, acid and alkali resistance, uniform structure, good lateral limit and soil consolidation, simple and fast construction, etc.

Hdpe geocell chambers can be used as cushion layers, to treat soft foundations, increase the bearing capacity of foundations, and can also be laid on slopes to form slope protection structures. Hdpe geocell can also be used to construct support structures.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

APPLICATION

Geocell Ground Enhancement Cellular System Gravel Grid Driveway Retaining Wall Geocell

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
