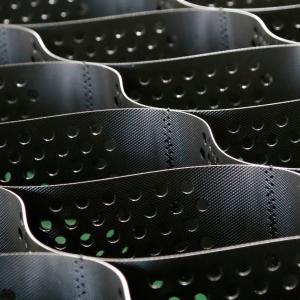

150mm Height China Texured Perforated HDPE Geocell Supply For Road Slope Protection

Name: 150mm Height China Texured Perforated HDPE Geocell Supply For Road Slope Protection
Brand: Geomax
Price: 1 USD

Wholesale 150mm Height China Texured Perforated HDPE Geocell Supply For Road Slope Protection from china suppliers

Brand Name : Geomax

Model Number : 1.5-100-712

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Raw Material : HDPE Plastic

Geocell Standard : ASTM

Cell Height : 50mm-300mm

Geocell Model : GM712

Geocell Color : Black, green, brown, Black Yellow White Green, Green or as per request

Welding Space : 712mm

Cell Thickness : 1.5mm

Geocell Surface : Textured&Perforated&smooth

Contact Now

150mm Height China Texured Perforated HDPE Geocell Supply For Road Slope Protection

Product Introduction

Hdpe geocell construction is convenient, time-saving, labor-saving, shortens the construction period, and reduces maintenance costs. hdpe geocells are used to prevent road (ground) collapse or cracks, and to keep the ground clean and beautiful. Hdpe geocells are used to improve the bearing capacity of roadbeds and extend their service life. Geotechnical chambers are suitable for various embankments and roadbeds, slope protection, and tunnel wall reinforcement. Hdpe geocells are suitable for load-bearing reinforcement in major airports, parking lots, dock cargo yards, etc.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

APPLICATION

150mm Height China Texured Perforated HDPE Geocell Supply For Road Slope Protection

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
